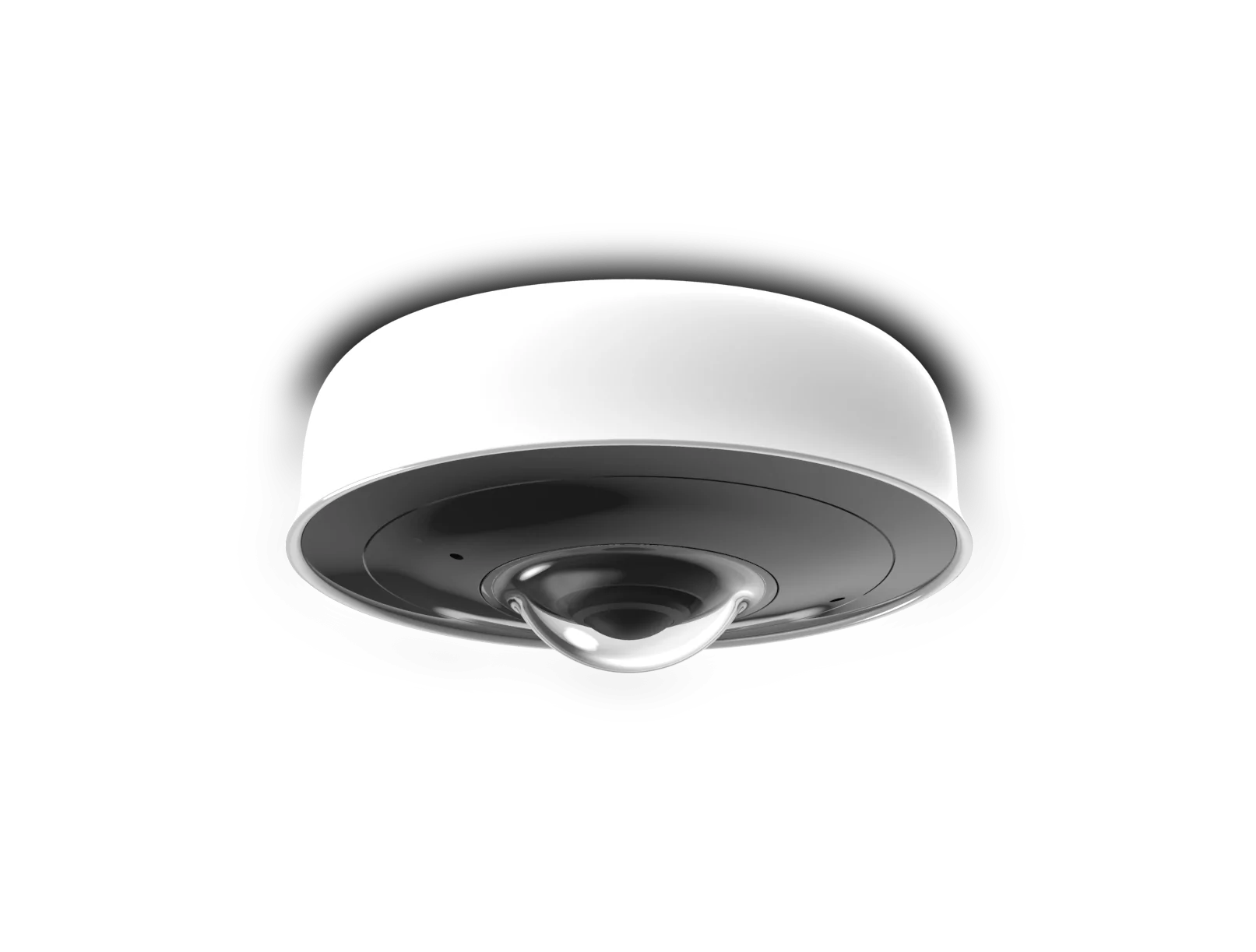

MV32 – Cámara de Seguridad Domo de interior Fisheye

Especificaciones

• Camera
  • 1/2.5” 8.4MP (4.2MP effective) progressive CMOS image sensor
  • 256GB high endurance solid state storage
  • 1.19mm focal length fixed lens
  • f/2.0 aperture
  • Field of view: Horizontal 180°, Vertical 180°
  • 1/30s to 1/32,000s shutter speed
  • Minimum illumination 0.18 Lux
• Video
  • 4.2MP (2058×2058) 360° overview with H.264 encoding, up to 15fps
  • 1MP (1080×1080) 360° overview with H.264 encoding, up to 8fps
  • Cloud augmented edge storage (locally stored video with metadata in the cloud)
  • Optimized retention settings (scheduling and motion-based) for variable retention
  • Up to 20 days of 24/7 continuous video storage per camera*
  • Direct live streaming with no client software (native browser playback)**
  • Stream video anywhere with automatic cloud proxy
  • High dynamic range (HDR)
  • Audio recording supported with built-in microphone
• Data Security
  • Full disk encryption (AES 256-bit)
  • Automatically purchased and provisioned TLS certificates (publicly-signed)
  • Management encryption and two-factor authentication
  • Wireless security:
    • WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS
    • TKIP and AES encryption
• Networking and Wireless
  • 1x 10/100/1000 Base-T Ethernet (RJ45)
  • DSCP traffic marking
  • Supported frequence bands (country-specific restrictions apply):
    • 2.4 GHz 802.11b/g/n radio
      • 2.412 - 2.484 GHz
    • 5 GHz 802.11a/n/ac radio
      • 5.150 - 5.250 GHz (UNII-1)
      • 5.250 - 5.350 GHz (UNII-2)
      • 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
      • 5.725 - 5.825 GHz (UNII-3)
  • 1x1 with one spatial stream
  • MU-MIMO support
    • 20 and 40 MHz channels (802.11n)
    • 20, 40, and 80 MHz channels (802.11ac)
  • Up to 256 QAM on both 2.4 GHz and 5 GHz bands
  • Integrated omni-directional antennas (4.4 dBi gain at 2.4 GHz, 6.3 dBi gain at 5 GHz)
• Features
  • Cloud managed with complete integration into the Meraki dashboard
  • Plug and play deployment with self-configuration
  • Dynamic day-to-night transition with IR illumination
  • Noise optimized motion indexing engine with historical search
  • Shared video wall with individual layouts supporting multiple cameras
  • Selective export capability with cloud proxy (with watermarked timestamps)
  • Highly granular view, review, and export user permissions with SAML integration
  • Motion heat maps for relative hourly or day-by-day motion overview
  • Motion alerts

• 2.4 GHz 802.11b/g/n radio
• 5 GHz 802.11a/n/ac radio
• Supported frequence bands (country-specific restrictions apply):
  • 2.412 - 2.484 GHz
  • 5.150 - 5.250 GHz (UNII-1)
  • 5.250 - 5.350 GHz (UNII-2)
  • 5.470 - 5.600, 5.660 - 5.725 GHz (UNII-2e)
  • 5.725 - 5.825 GHz (UNII-3)
• Security
• WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
• EAP-TTLS
• TKIP and AES encryption
• Power
  • Power consumption: 12.95W maximum via 802.3af PoE
• Environment
  • Temperature: 0°C - 40°C (32°F - 113°F)
• Physical characteristics
  • Dimensions: 106mm × 45.86mm (diameter × height)
  • Weight 215g
  • Female RJ45 Ethernet connector
  • Multicolor, multifunction status LED
  • Reset button
• Warranty
  • 3 year hardware warranty with advanced replacement
• Ordering information
  • • MV32-HW: 256GB Indoor Fisheye Camera
    • LIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)
    • MA-INJ-4-XX: Meraki 802.3at Power over Ethernet injector (XX = US, EU, UK, or AU)
    • MA-PWR-MV-LV: Low voltage 12VDC/24VAC input PoE injector for MV cameras
• In the box
• Quick start & installation guide
• MV camera hardware
• Wall mounting kit
